Maple Leaf Gardens Arena in Canada

Ontario

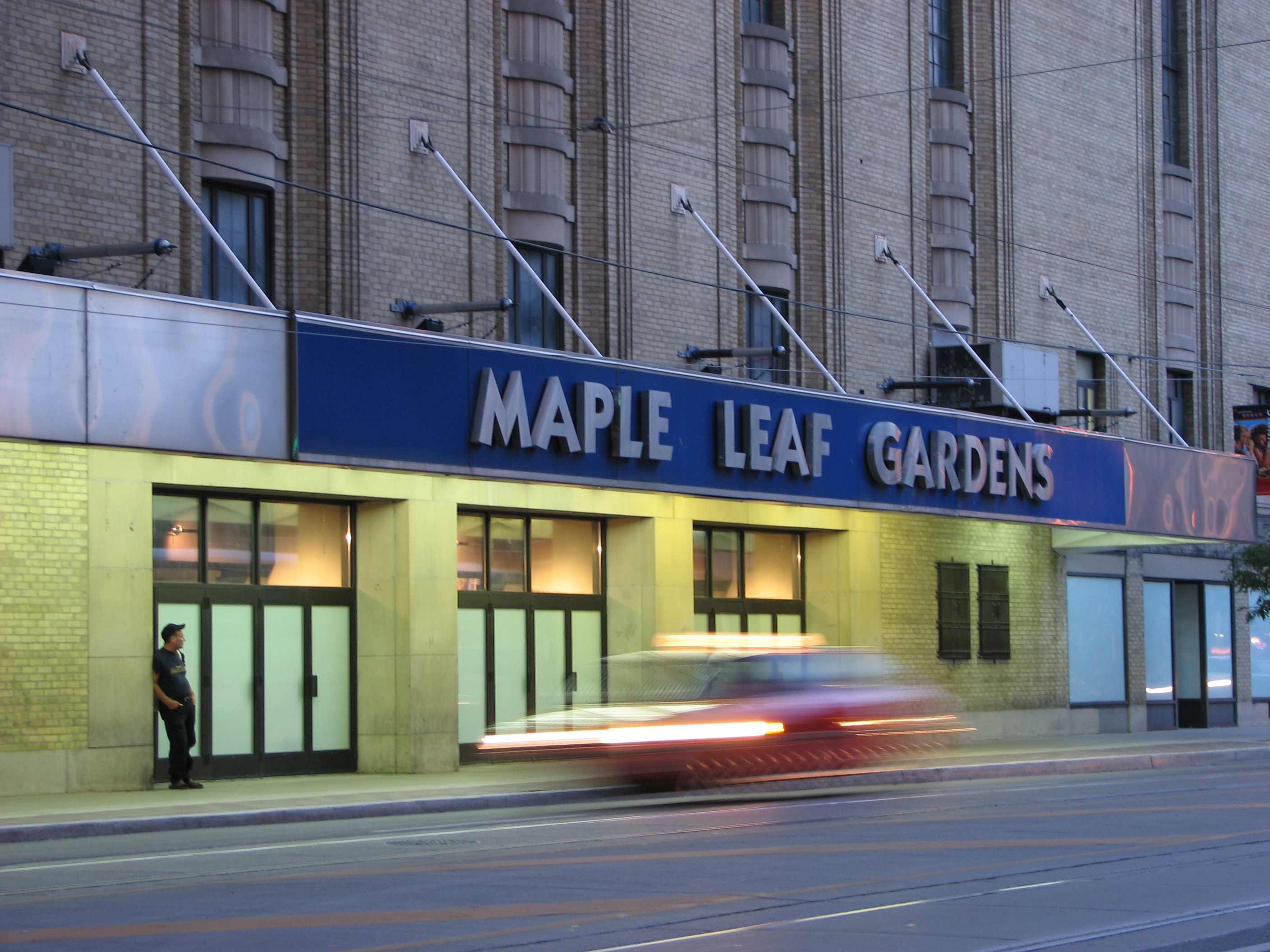

Maple Leaf Gardens

Replacing — and preserving — an iconic Toronto dome

  • Category

    Roofing Solutions
  • Completed

    2013
  • Type

    Hospitality & Entertainment
  • Size

    1,100 squares

Challenge

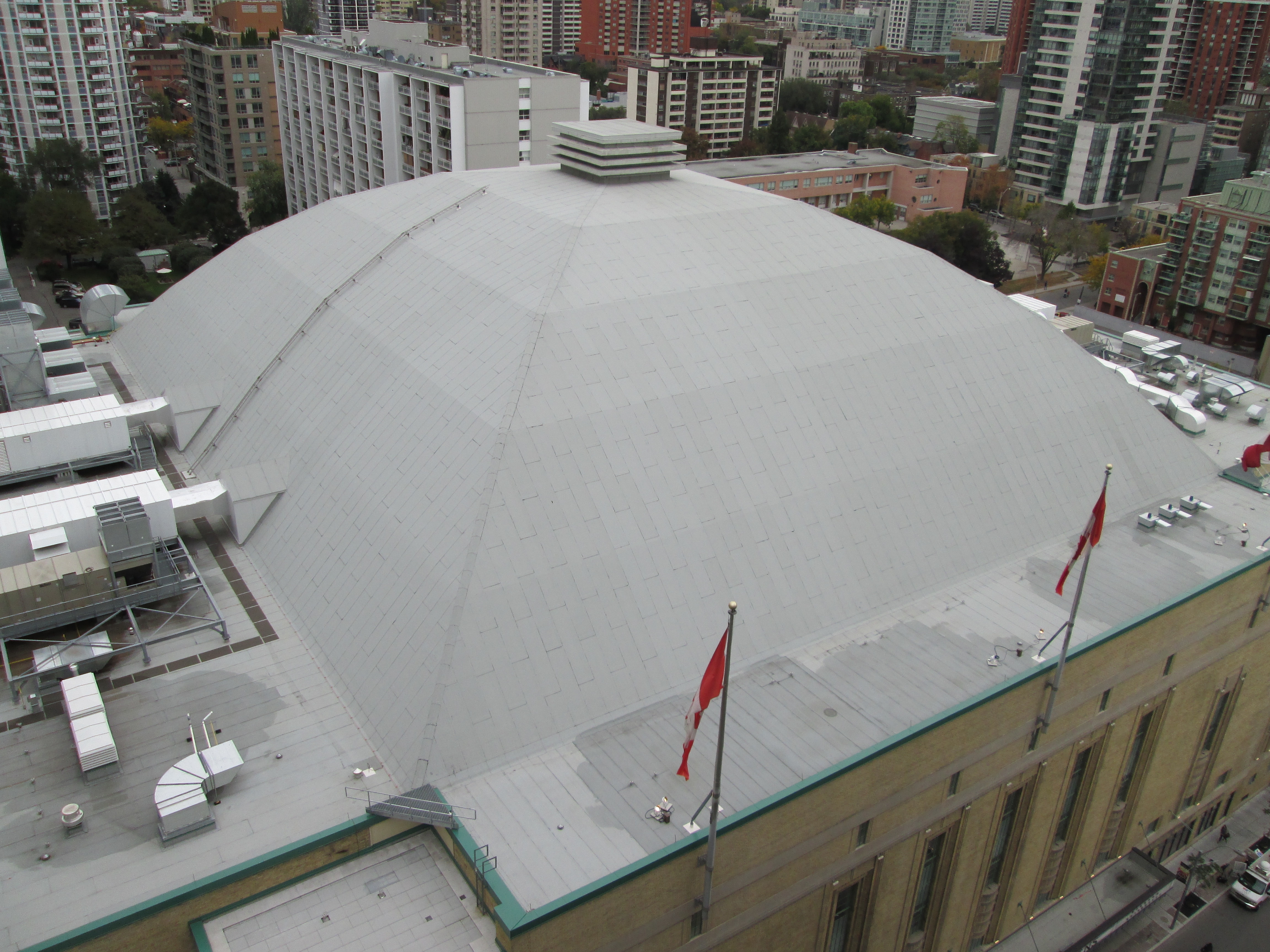

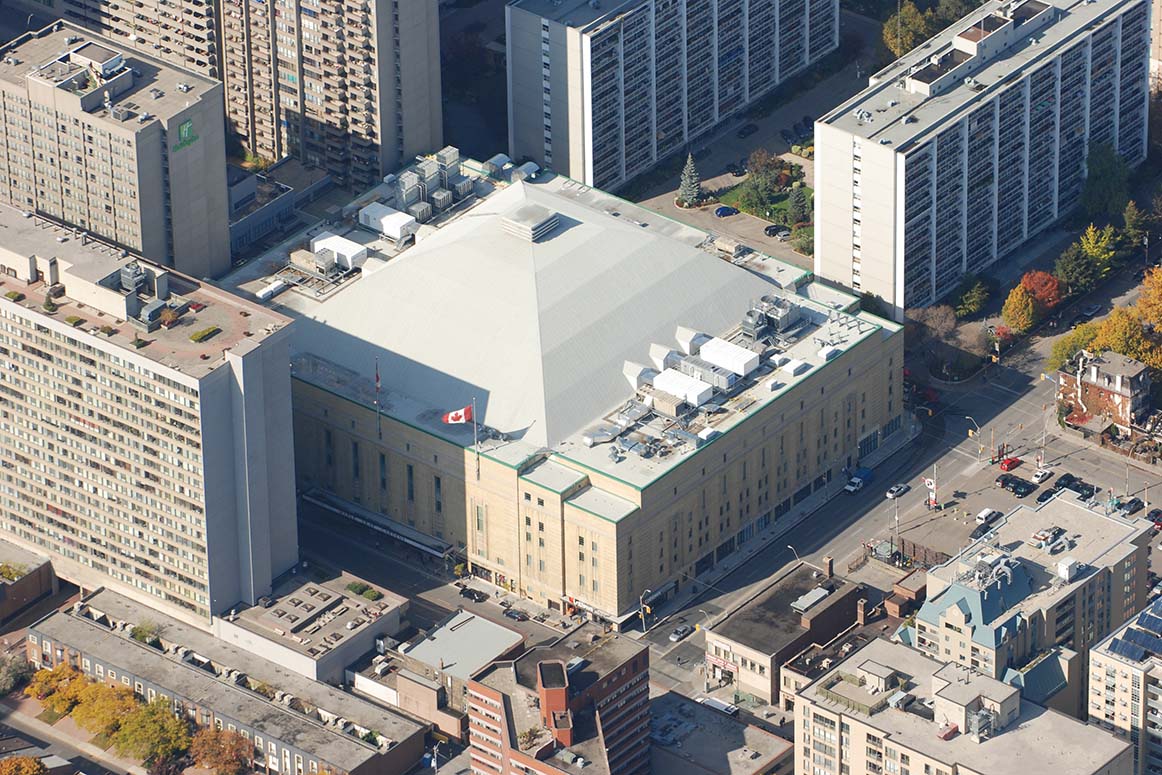

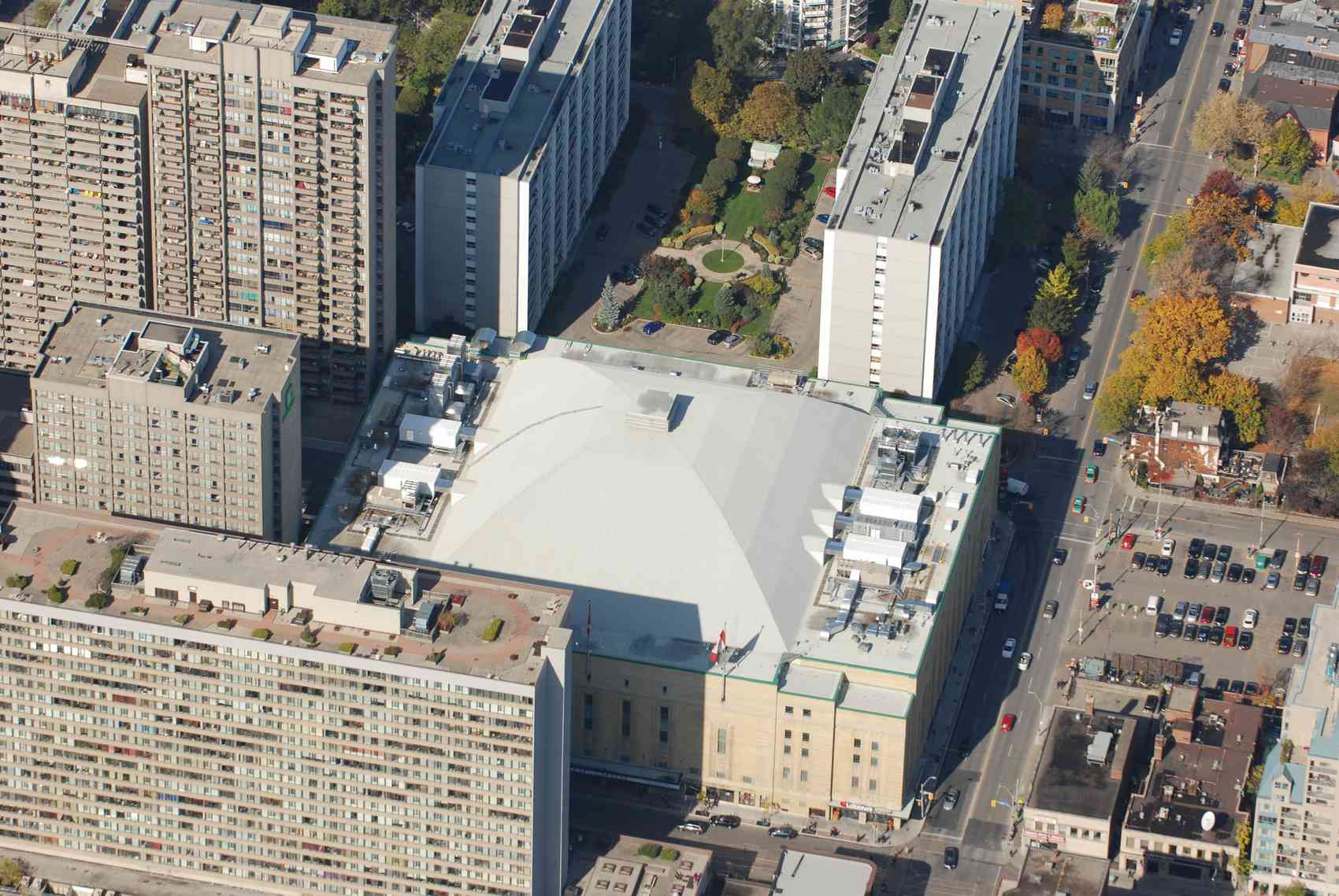

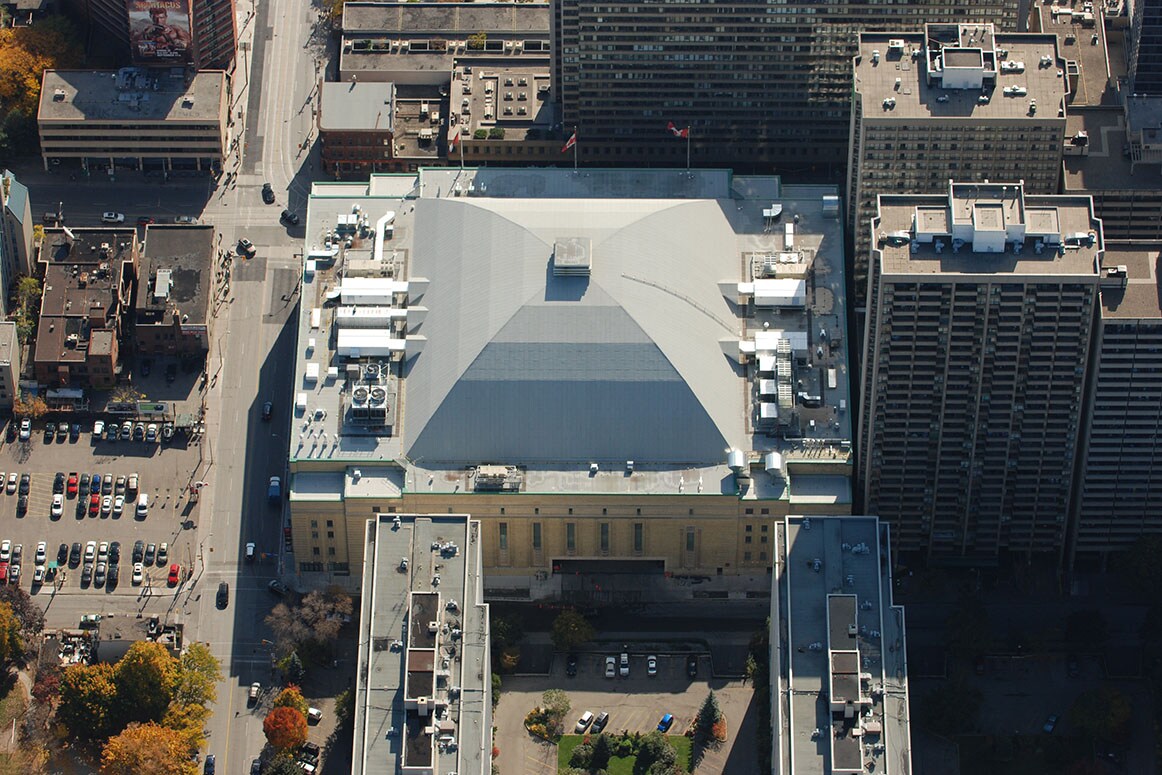

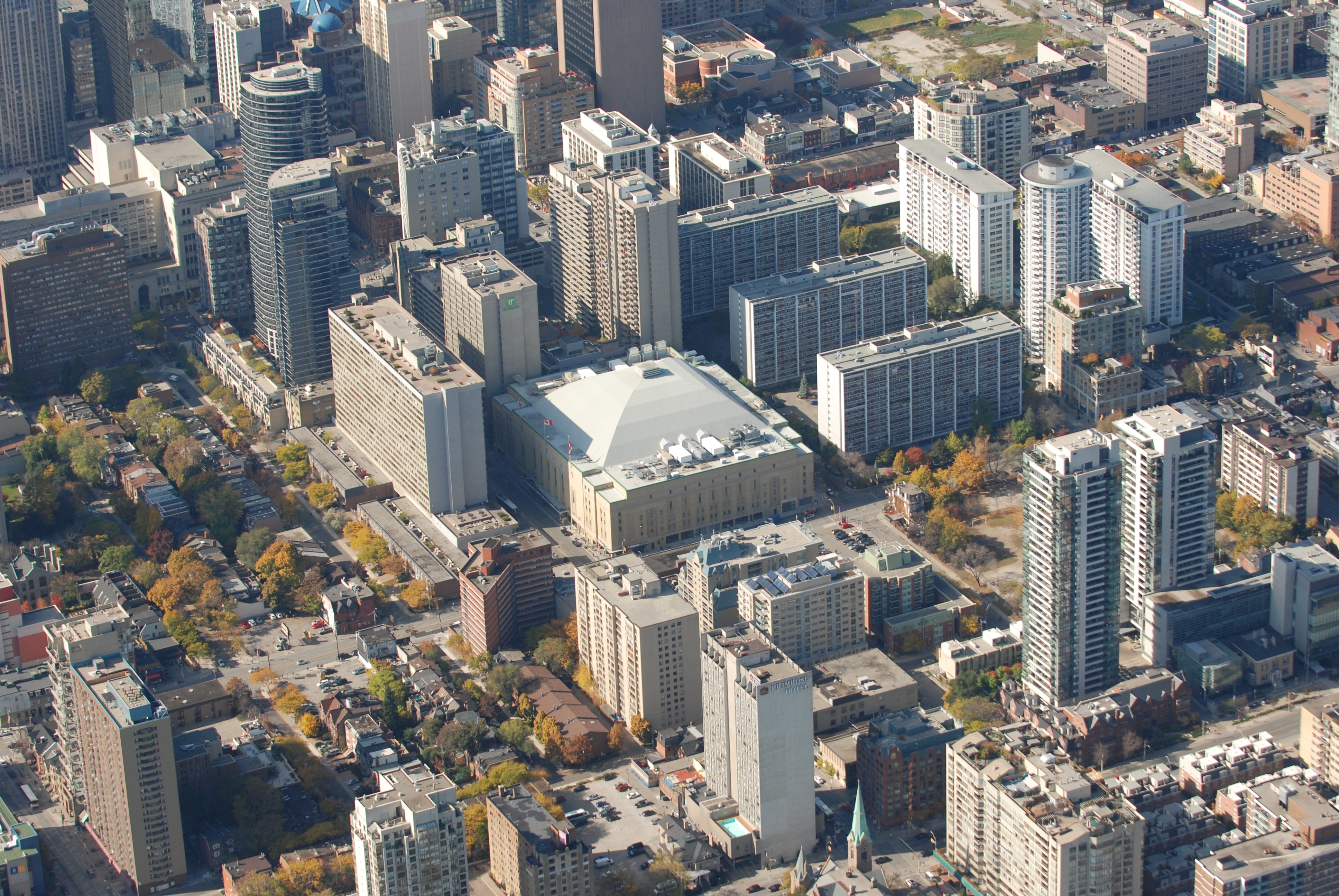

Maple Leaf Gardens, recognized as a National Historic Site of Canada, was originally built as the home of the Toronto Maple Leafs. It’s where the team won their 11 Stanley Cups, and also became an essential stop for musical icons, political leaders, and several sporting events. The 25-year-old PVC single-ply membrane covering the structure’s iconic dome had reached the end of its service life, and the gravel- surfaced, 4-ply built-up system on adjacent flat areas was also due for replacement. The building owners were seeking a solution that would match the roof’s original aesthetics and also help meet their environmental objectives.

Solution

Siplast provided a robust SBS-modified bitumen roofing system that helped meet the building owners’ performance, longevity, and environmental goals:

  • Durable membrane to maintain the dome
    The torch-applied, two-ply Paradiene® 20/30 SBS- modified bitumen roofing system was selected for its proven performance and to help preserve the structure’s landmark dome.
  • Solution to help support sustainability
    To help meet the building’s environmental needs, a Siplast Eco-Activ® cap sheet with Noxite® granules was specified—to help neutralize nitrogen oxides (NOx) and help contribute to cleaner air across Toronto.
  • A roof designed to last
    The Paradiene® 20/30 system helped protect the landmark structure and maintain its original aesthetics, while meeting modern performance standards.

The completed roof at Maple Leaf Gardens honors the building’s architectural heritage while introducing modern materials that support longevity and sustainability—a fitting update for one of Toronto’s most recognizable rooftops.

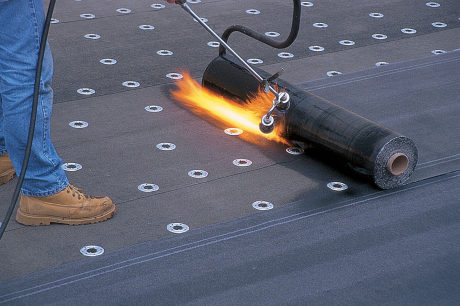

installation of a torch-applied rolled roofing sheet

SBS-Modified Bitumen Roof Systems

In the 1960s, working with Shell Chemical of Europe, Siplast developed SBS (styrene-butadiene-styrene) modified bitumens in response to the changing requirements of modern construction. Siplast Engineered Roof Systems have been applied in the extremely varied weather conditions of more than 40 countries. Read more about our history and commitment to quality and our line of SBS-modified bitumen roofing products.
