Paradiene 20, Torch-Applied

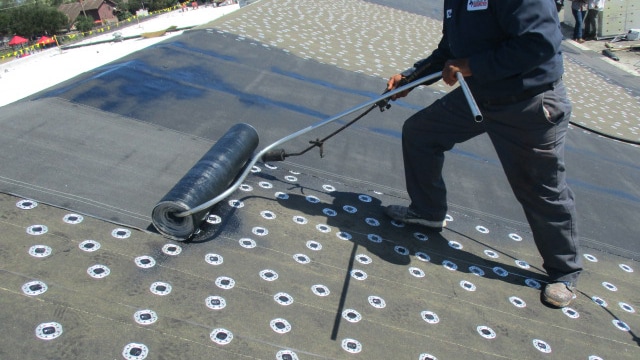

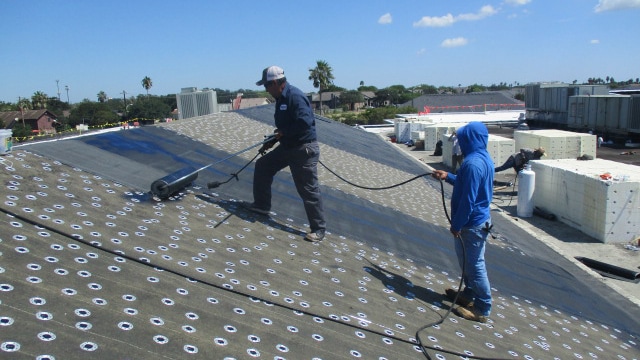

torch application of Paradiene 20 base ply
Paradiene 20, Torch-Applied Masthead
Paradiene 20 TG

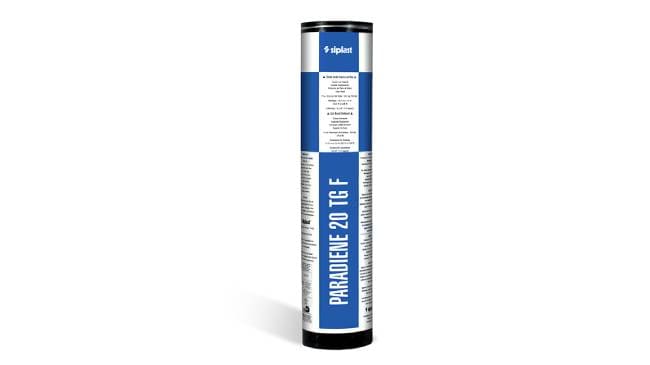

Paradiene 20 TG F
Paradiene 20 TS

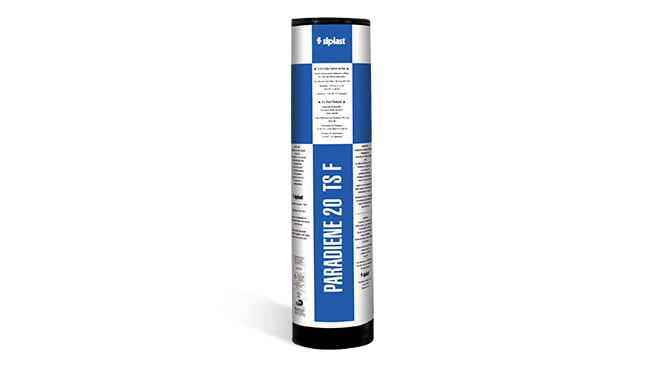

Paradiene 20 TS F
Paradiene 20 HT TG

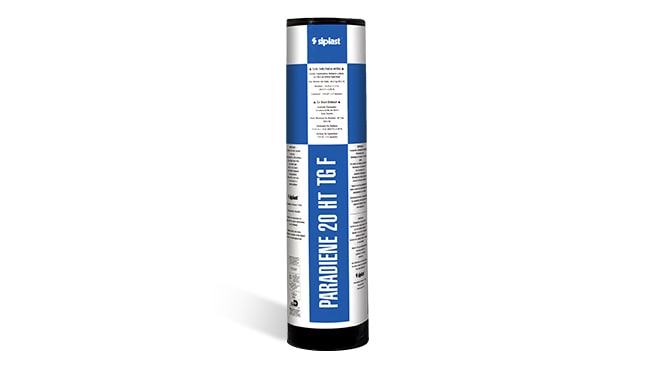

Paradiene 20 HT TG F
Paradiene 20 HT TS
Paradiene 20 HT TS F
Paradiene 20 HV TG

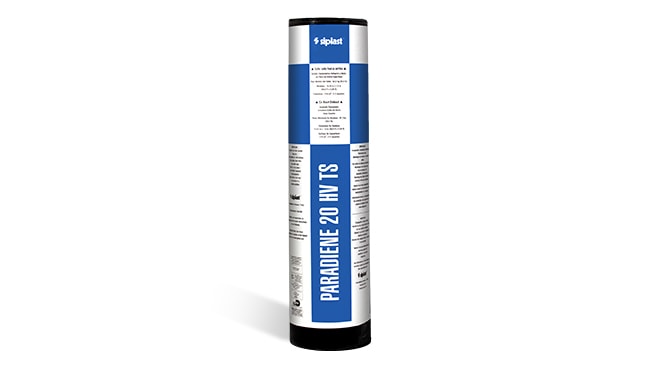

Paradiene 20 HV TS
Paradiene 20 HV TS F
Paradiene 20 PR TG
Paradiene 20 EG TG

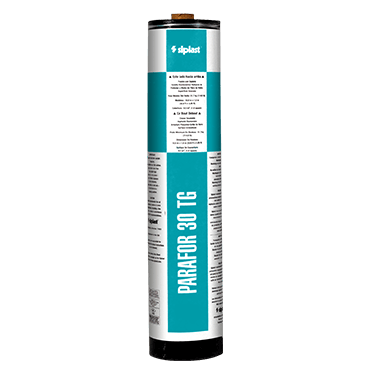

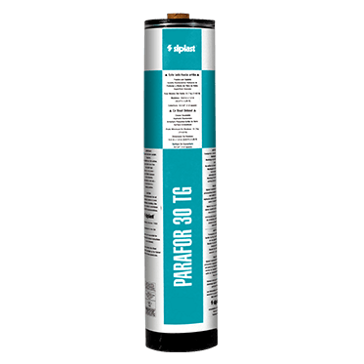

Paradiene 20 TG is the first ply of Paradiene 20 TG/30 TG Systems. The base ply is an elastomeric asphalt blend reinforced with a fiberglass that absorbs roof stresses, while the granule-surfaced top ply, Paradiene 30 TG or Parafor 30 TG, shields the base from the elements and mechanical abuse. These high-performance, modified bitumen-finish plies are torch-applied to approved substrates. The top surfaces are covered with a silica parting agent or perforated burnoff film and the back surfaces are coated with a high-performance modified asphalt adhesive layer specially formulated for torch applications. The adhesive layers are manufactured using a special process that embosses the surface with a grooved pattern to provide optimum burnoff of the plastic film and maximize application rates.

  • A unique elastomeric blend formulated by SBS and high quality proprietary asphalt.
  • Designed for roof membrane systems.
  • Available with Siplast RoofTag RFID.

Paradiene 20 TG

Consists of a lightweight random fiberglass mat impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

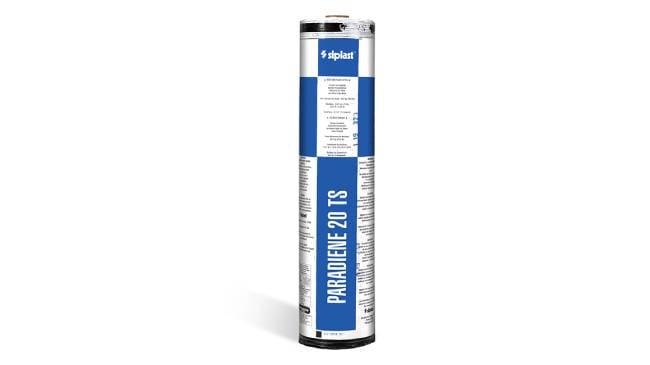

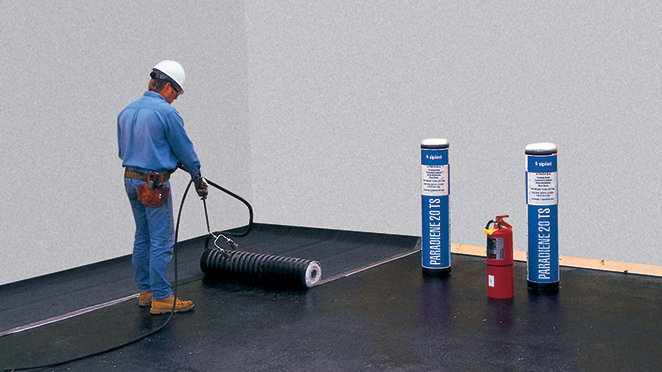

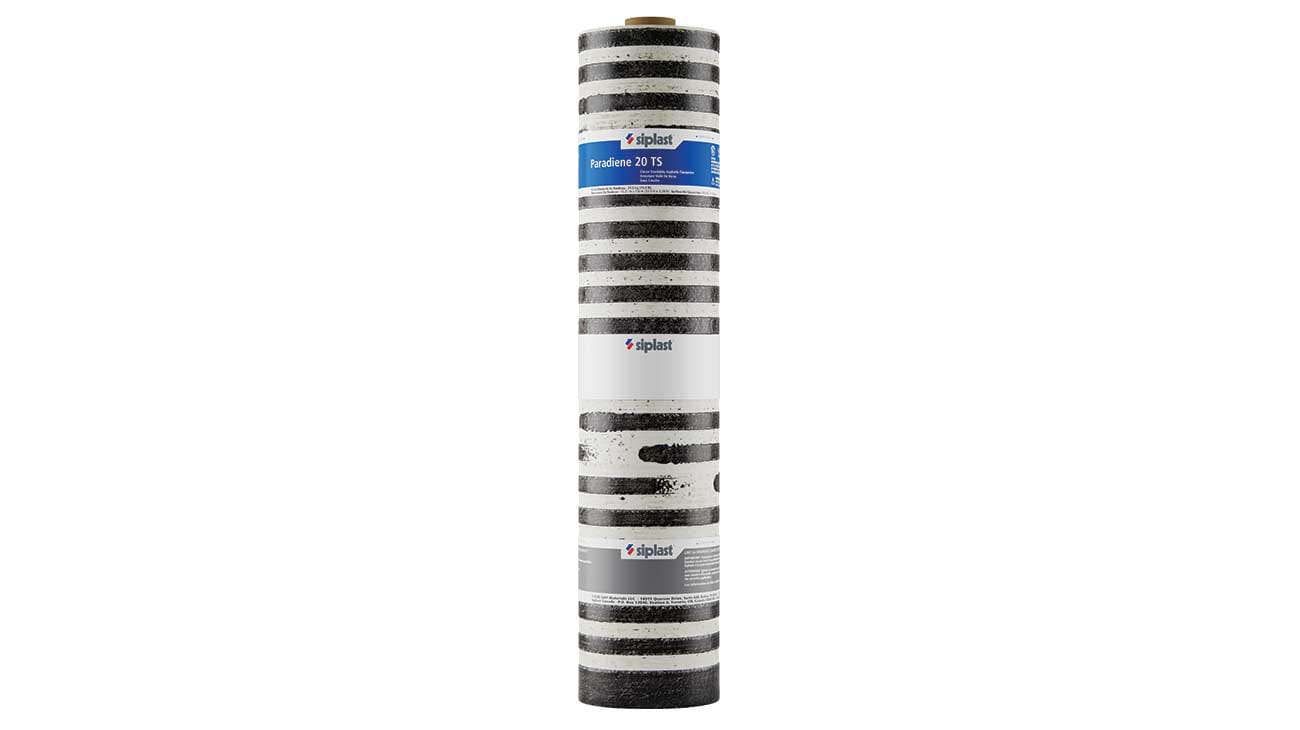

Paradiene 20 TS

Consists of a lightweight random fibrous glass mat impregnated with high-quality SBS-modified bitumen. The unique back surface design consists of factory-applied, heat-activated adhesive stripes combined with a proprietary acrylic coating between the stripes, which provides for uniform bonding of 50% of the total surface area of the sheet. Designed for direct application to primed structural concrete decks, approved insulations, and other approved substrates.

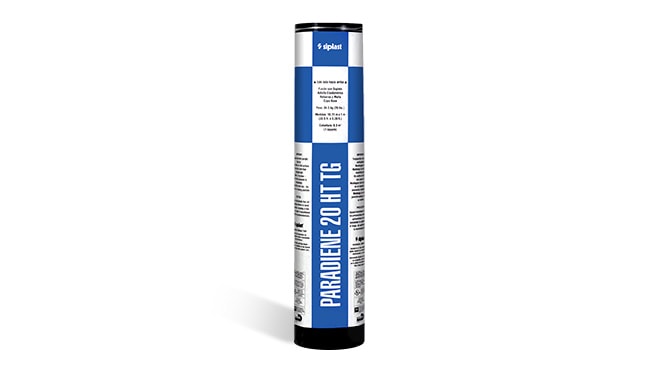

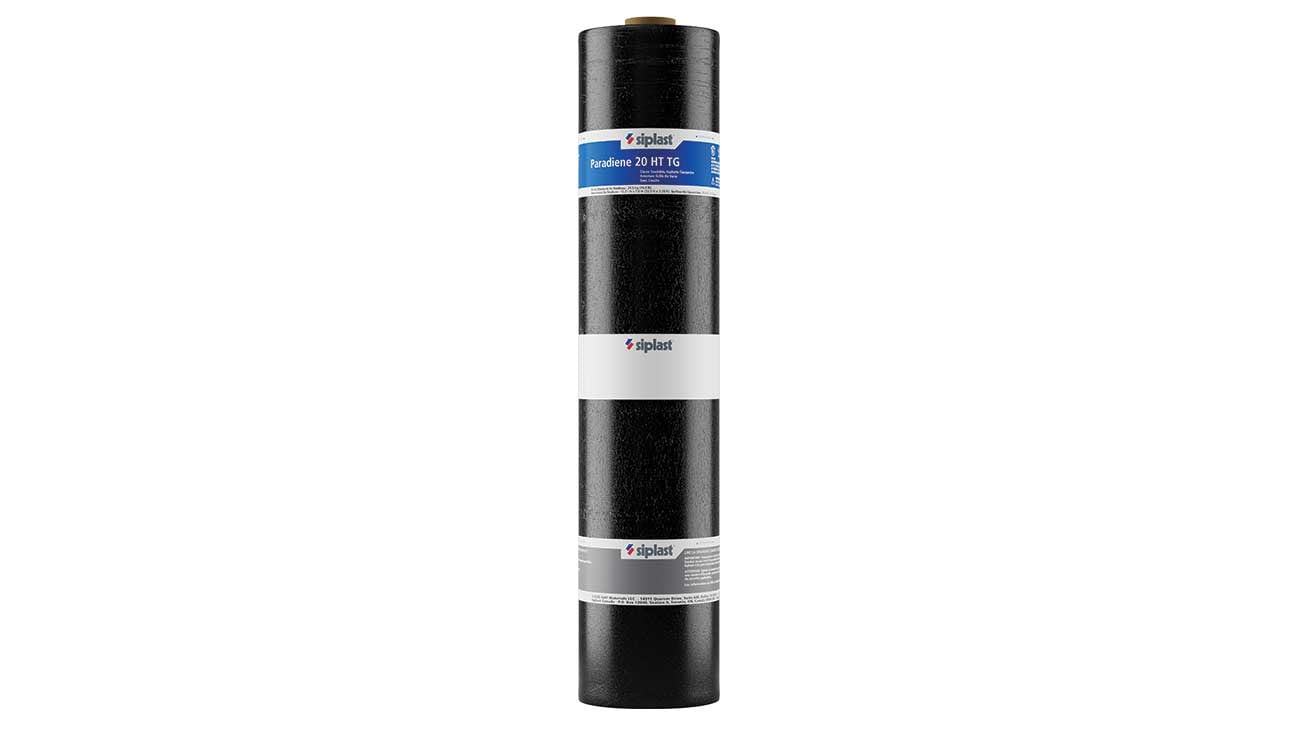

Paradiene 20 HT TG

Consists of a high tensile fiberglass scrim/fiberglass mat composite impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

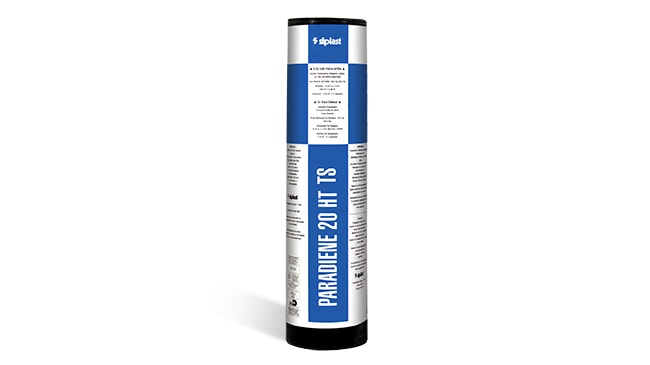

Paradiene 20 HT TS

Consists of a high tensile fiberglass scrim/fiberglass mat composite impregnated and coated with high-quality SBS-modified bitumen. The unique back surface design consists of factory-applied, heat-activated adhesive stripes combined with a proprietary acrylic coating between the stripes, which provides for uniform bonding of 50% of the total surface area of the sheet. Designed for direct application to primed structural concrete decks, approved insulations, and other approved substrates.

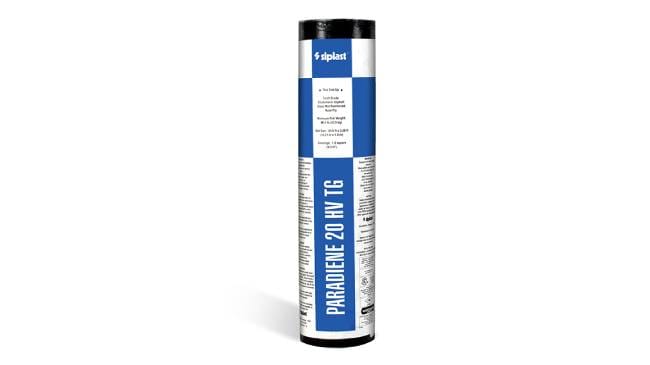

Paradiene 20 HV TG

Consists of a lightweight random fibrous glass mat impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

  • Additional Information

    Used in conjunction with torchable Paradiene/Parafor Roof Systems requiring extended warranties or guarantees.

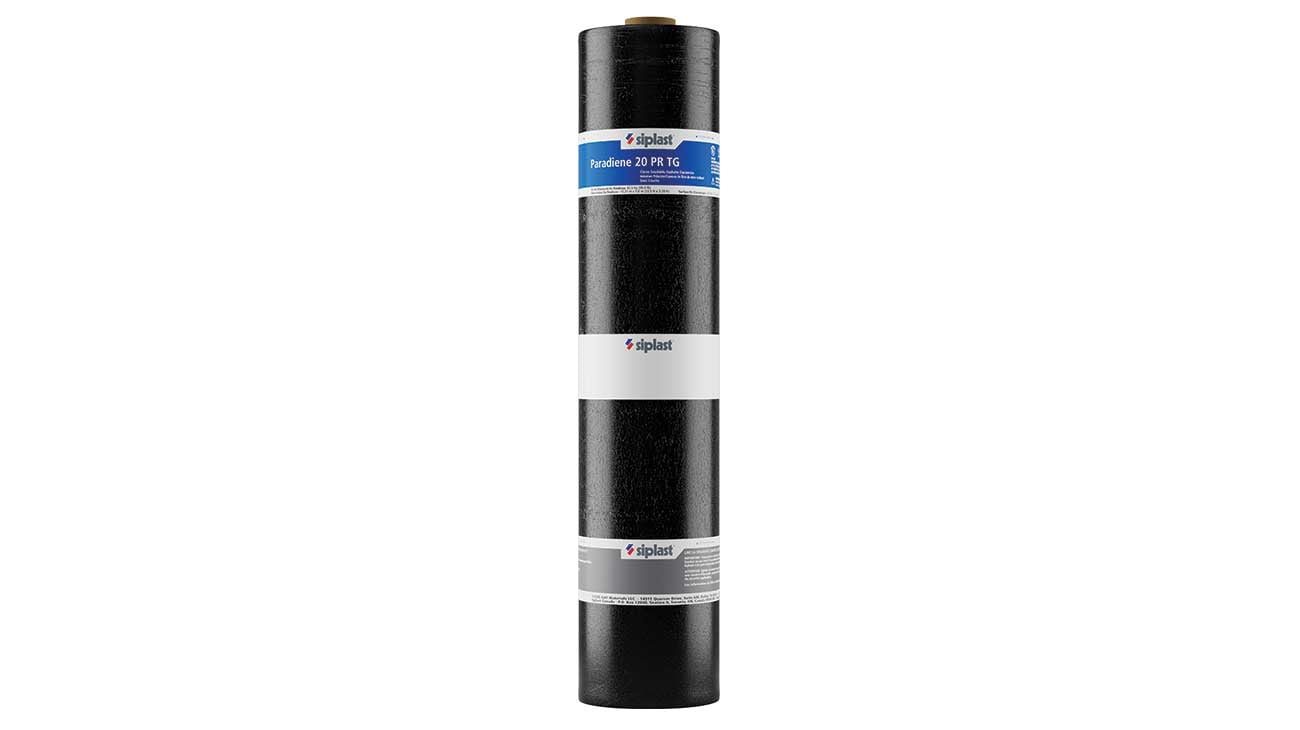

Paradiene 20 PR TG

Consists of a fiberglass scrim reinforced/polyester mat composite impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

Paradiene 20 EG TG

Consists of a high tensile fiberglass scrim/fiberglass mat composite impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

  • Additional Information

    Used in conjunction with torchable Paradiene/Parafor Roof Systems requiring extended warranties or guarantees.

Finish or Cap Sheets

Looking for Parasolo PVC Hybrid System details? Browse here

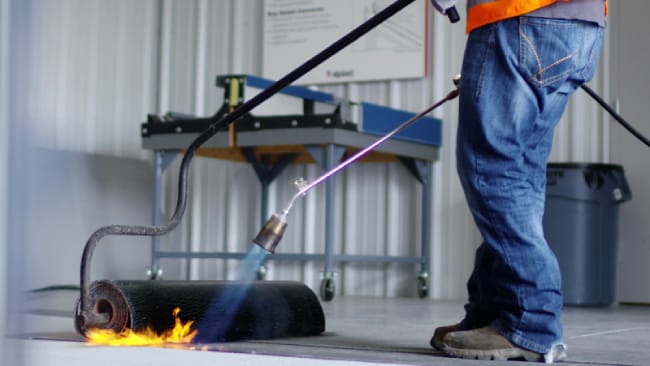

The RISE Center: Tensile Testing for SBS-Modified Bitumen

Watch how SBS-modified bitumen roofing materials are tested to determine how they perform over their lifetime.

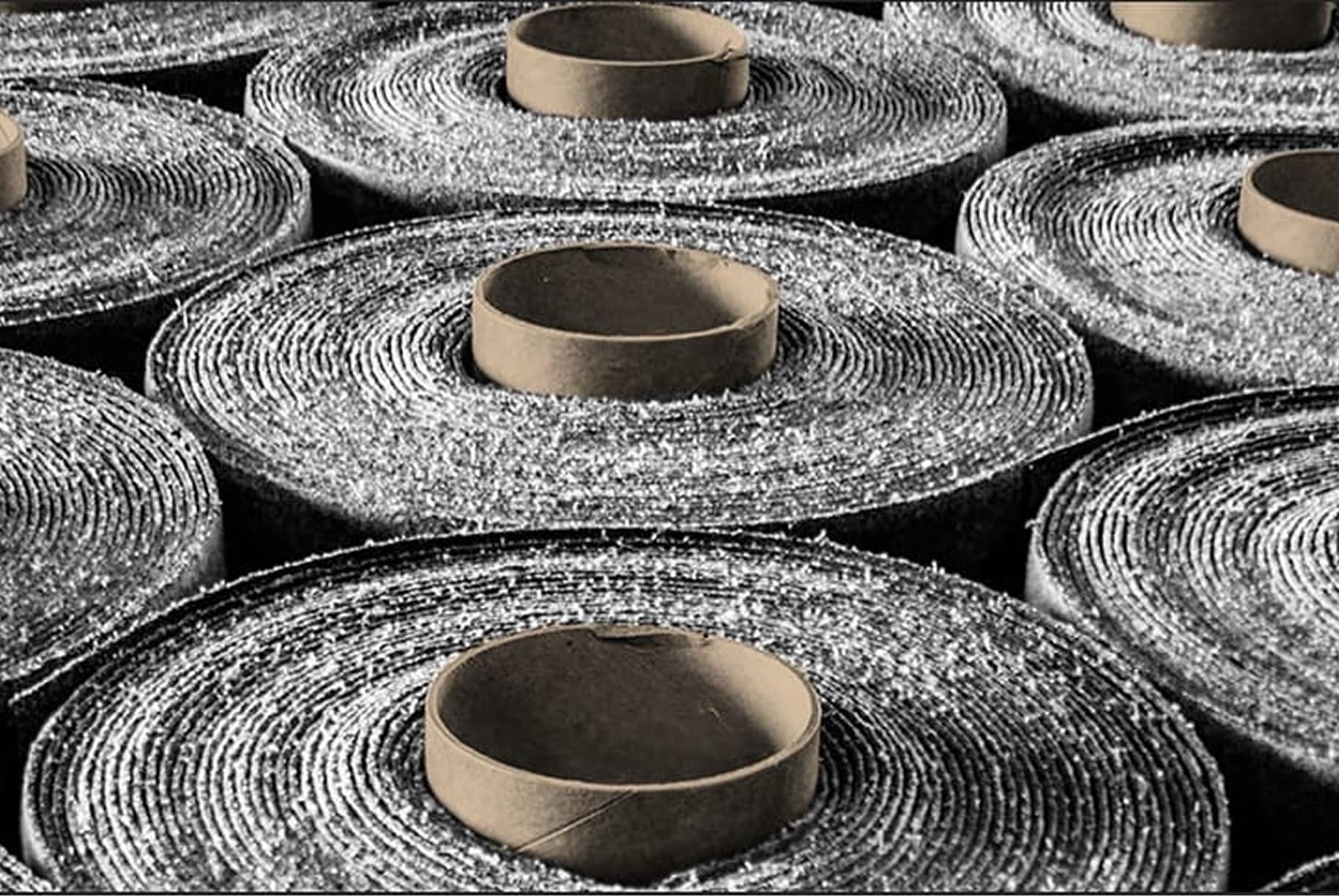

Rows of rolled roofing membrane, possibly modified bitumen or asphalt, showcasing the textured surface and circular brown cores, ready for distribution or installation.

RISE Blog: Paradiene 20/30 SBS-Modified Bitumen Membrane Systems

There are certain physical properties that a high quality SBS-modified bitumen system (e.g., Siplast Paradiene 20/30 system) has that help enable it to maintain performance over decades of service on a roof. Learn more by reading our article.
View Paradiene article
