Paradiene 20, Self-Adhesive

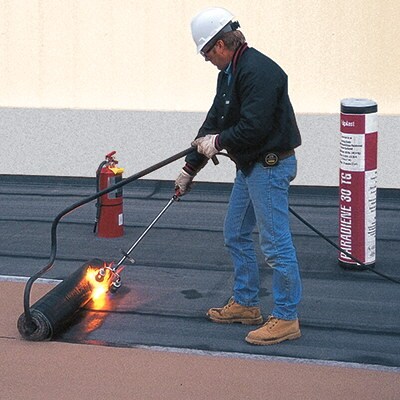

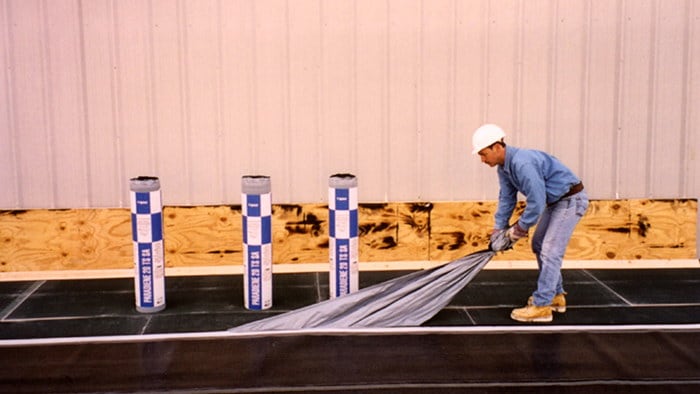

Paradiene 20 SA is a multi-purpose self-adhesive sheet that may be utilized in the Paradiene 20/30 Roof System. The back surface is coated with a self-adhesive bitumen layer specifically formulated for optimum adhesion in low-slope membrane applications and lined with high-strength polyolefin release film. End laps must be heat welded and a torch-applied finish layer of Paradiene TG, Veral, or Parafor must be applied in the same day. If same-day application is not possible, all laps of the Paradiene 20 SA should be heat welded.
- A unique elastomeric blend formulated by SBS and high-quality proprietary asphalt.
- Designed for use in homogeneous multi-layer modified bitumen roof membrane systems.
- Available with Siplast RoofTag RFID.

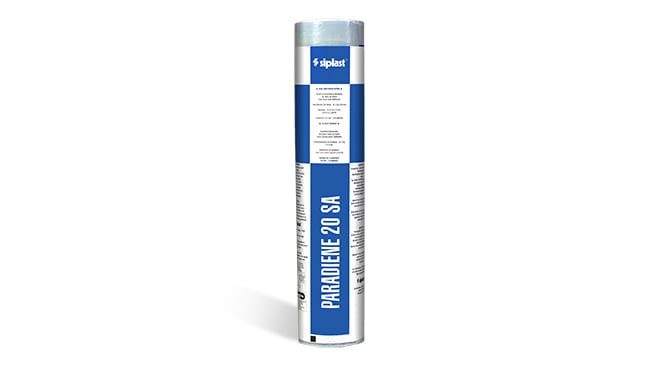

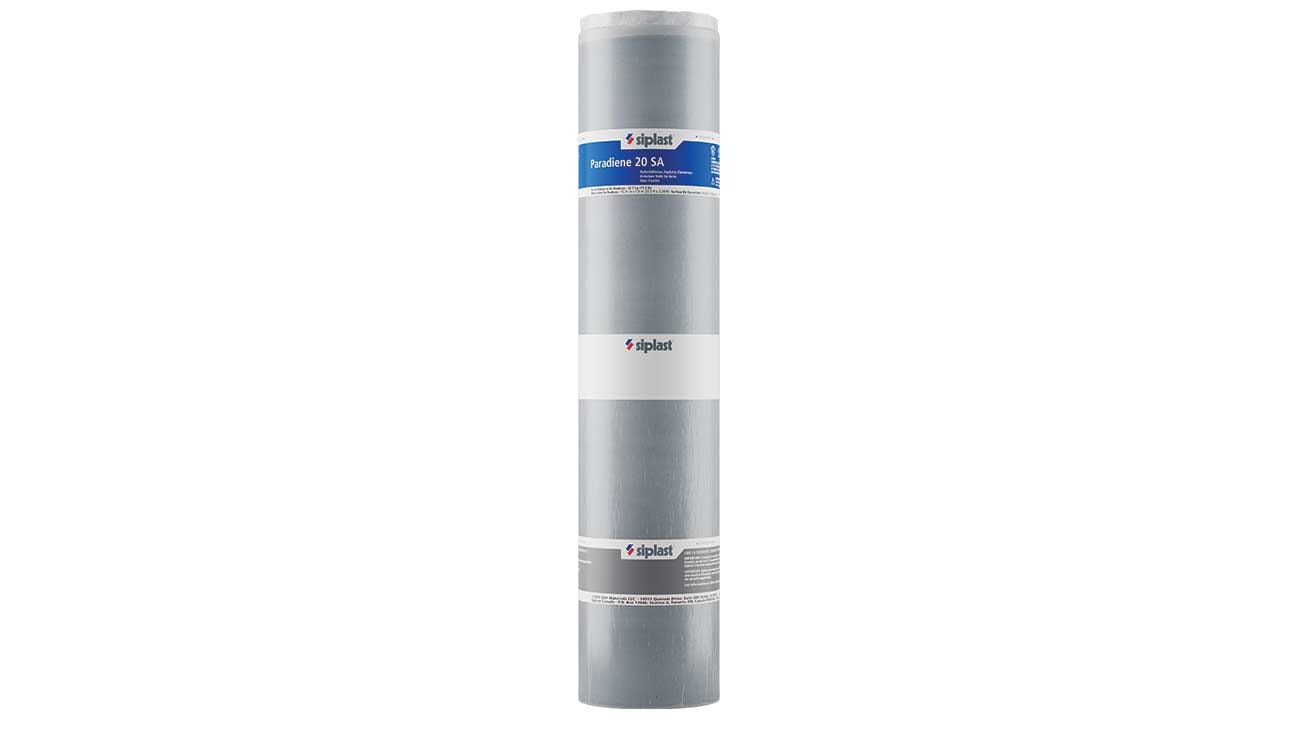

Paradiene 20 SA
Consists of a lightweight random fibrous glass mat impregnated and coated with high-quality SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.

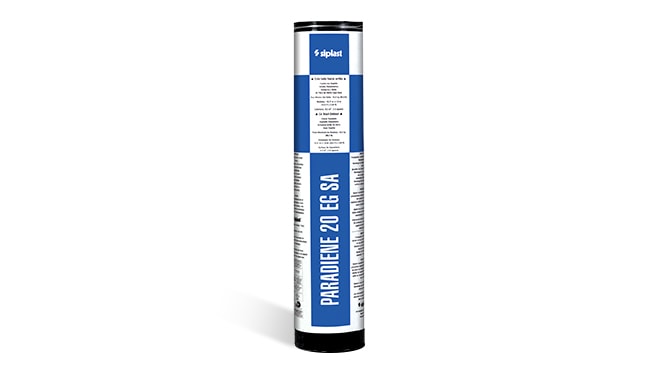

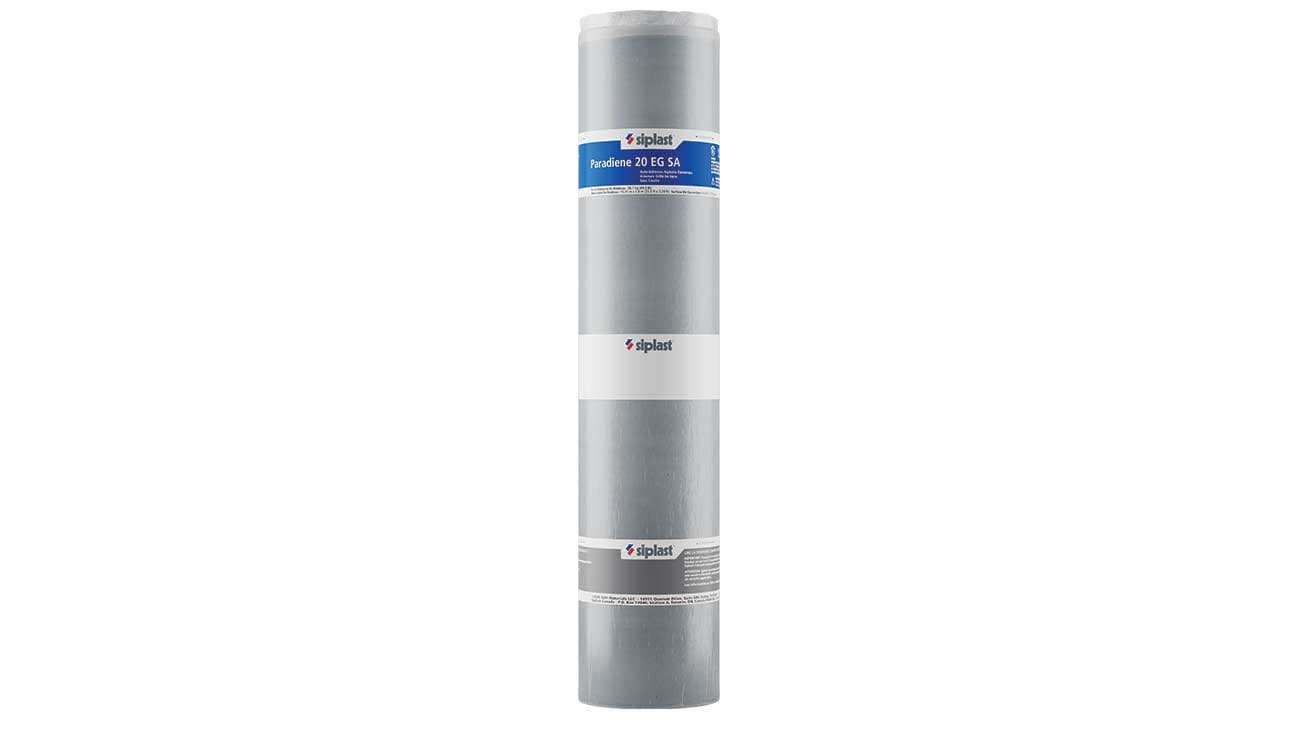

Paradiene 20 EG SA
Consists of a fiberglass scrim/fiberglass mat composite impregnated and coated with high-quality, heavy-duty SBS-modified bitumen. Designed to be used as a base ply for direct application to approved roof board products and other approved substrates.
-
Additional Information
Used in conjunction with Paradiene/Parafor Roof Systems requiring extended warranties or guarantees.

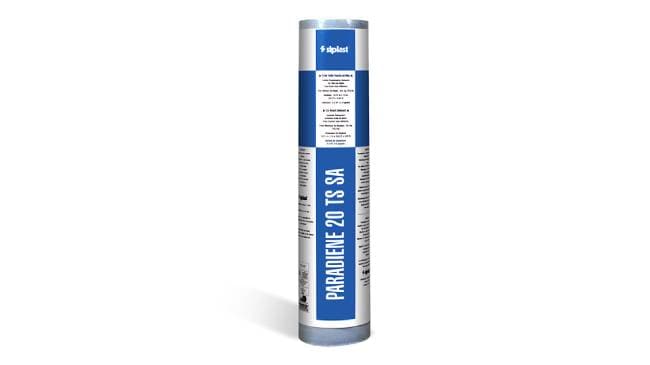

Paradiene 20 TS SA
Consists of a lightweight random fibrous glass mat impregnated and coated with an elastomeric SBS-modified bitumen. The unique back surface design consists of factory-applied, self-adhesive stripes combined with a proprietary acrylic coating between the stripes, which provides for uniform bonding of 50% of the total surface area of the sheet. Designed for direct application to approved insulations and roof boards, primed structural concrete decks, and other approved substrates.
Finish or Cap Sheets
