Insulcel

lightweight insulating concrete Insulcel

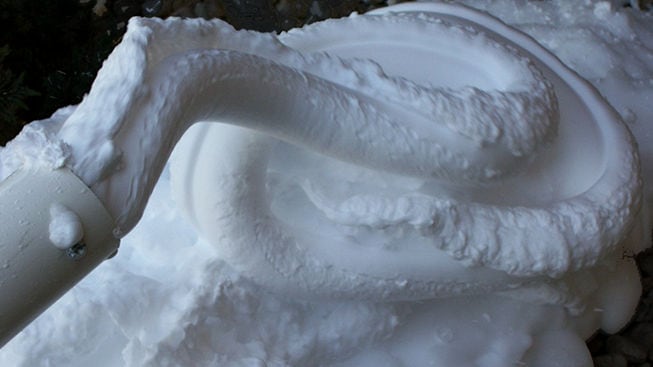

Insulcel cellular foam

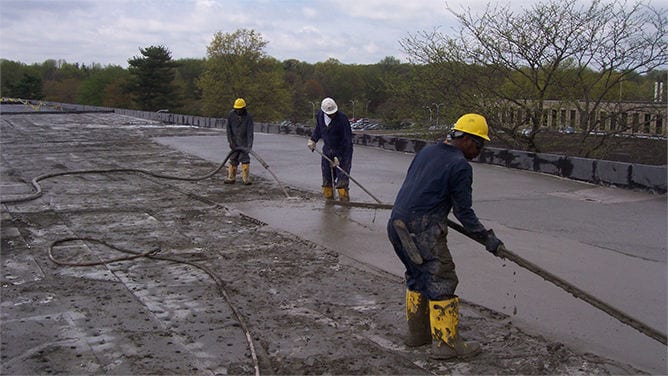

The Insulcel System combines the unique properties of lightweight insulating concrete and Insulperm premium-expanded polystyrene foam insulation board. The Insulcel mix consists of Insulcel-PB pregenerated cellular foam with a Portland cement/water slurry. The Insulcel mix is appropriate for jobs located in climates that are conducive for proper curing of cellular concrete. Insulcel is placed at a minimum two-inch thickness placed over the top of Insulperm Insulation Board. The Insulcel System utilizes the Zono-Tite Base Sheet Fastener, which has a nominal two-inch length.

  • Siplast offers three cellular foam-based lightweight insulating concrete systems: Insulcel, Insulcel RT, and Zonocel.
  • Reroofable to help delay or eliminate diversion to landfill.
  • Provides fire protection, prevents air infiltration, and bonds the total insulation system to the substrate.

Insulcel

Pregenerated foam used with Portland cement/water slurry for cellular Siplast Lightweight Insulating Concrete Systems.

Insulcel-E

An admixture liquid foam concentrate, used with Portland cement/water slurry for cellular Siplast Lightweight Insulating Concrete Systems.

Zono-Tite Fastener

Base sheet fastener for use with lightweight insulating concrete.

  • Unit

    Box

Insulcel-E Traducciones españoles de etiquetas

Parabase

Parabase

Parabase base sheets are typically used in nailable applications, but several variants can also be used as an adhered ply sheet in certain systems. To learn more about all of our parabase systems click the link for more information.
View Page

Don't forget the Insulperm Insulation Board! View product here

Additional resources
