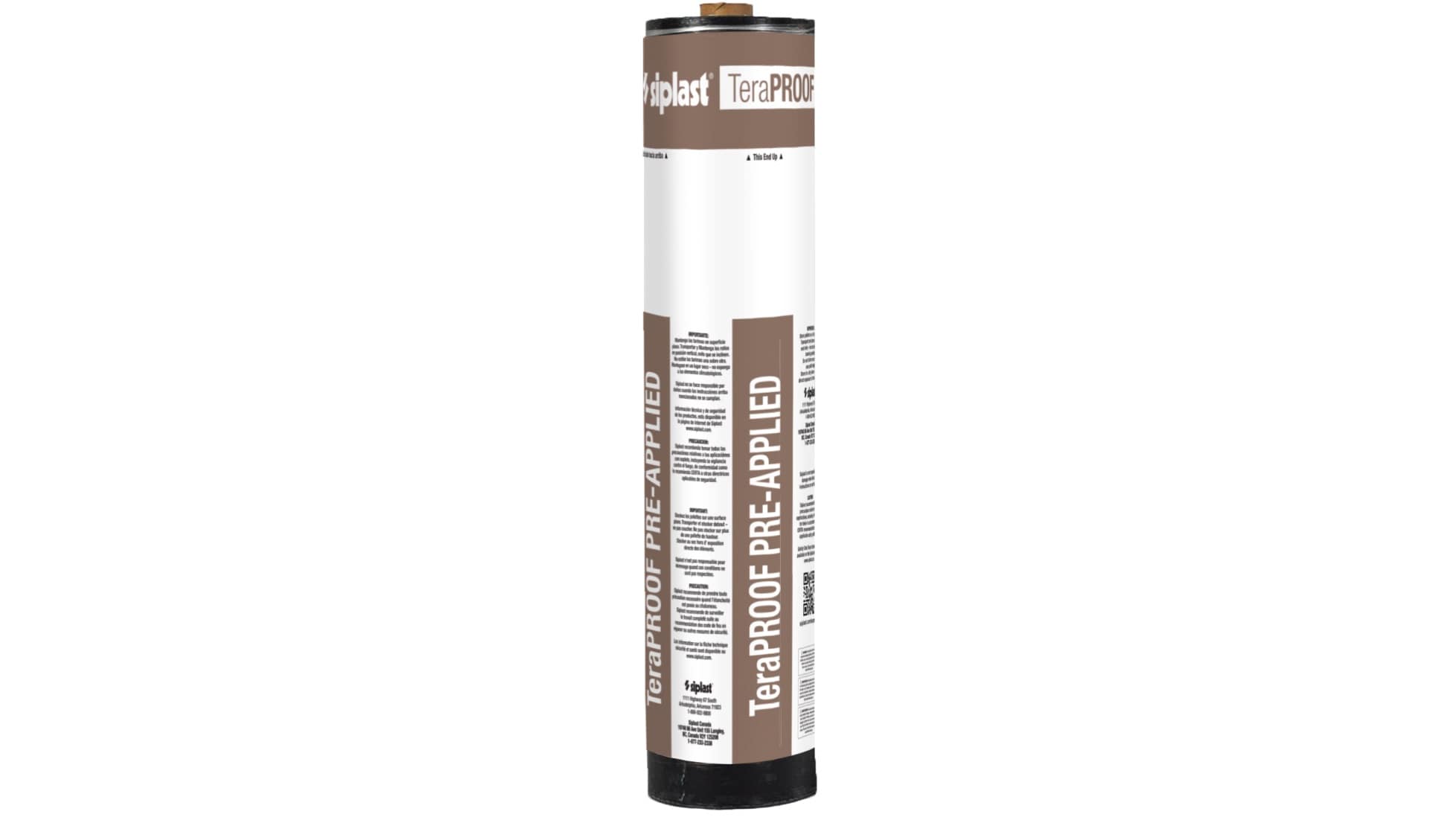

TeraPROOF™ Pre-Applied SBS Membranes

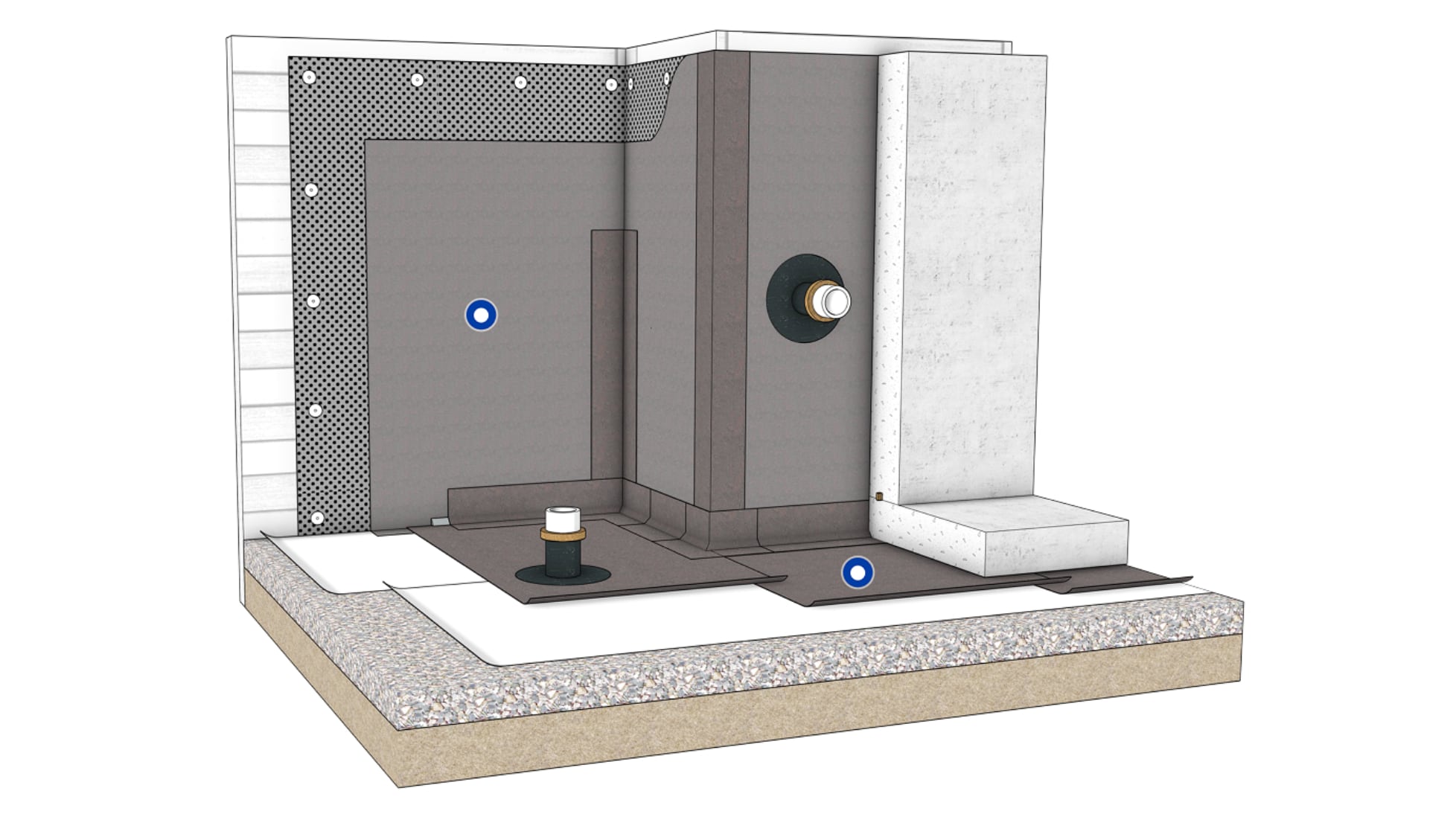

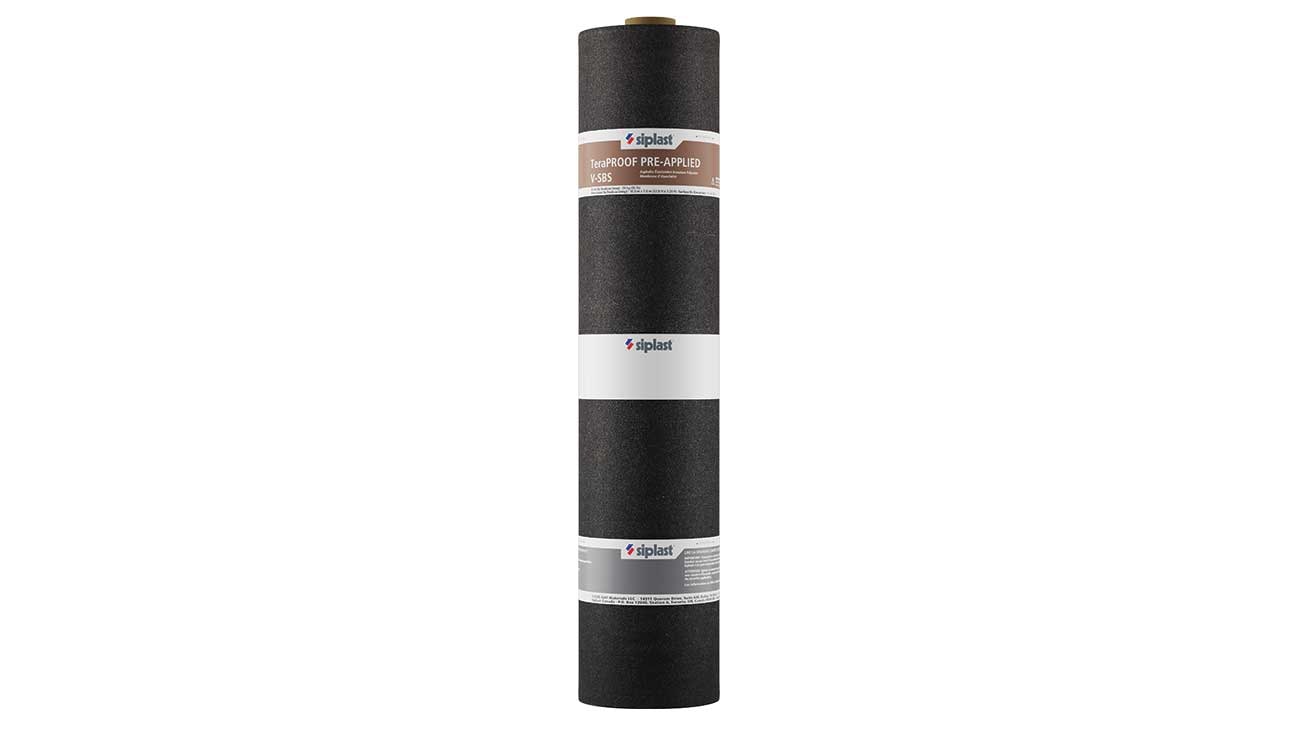

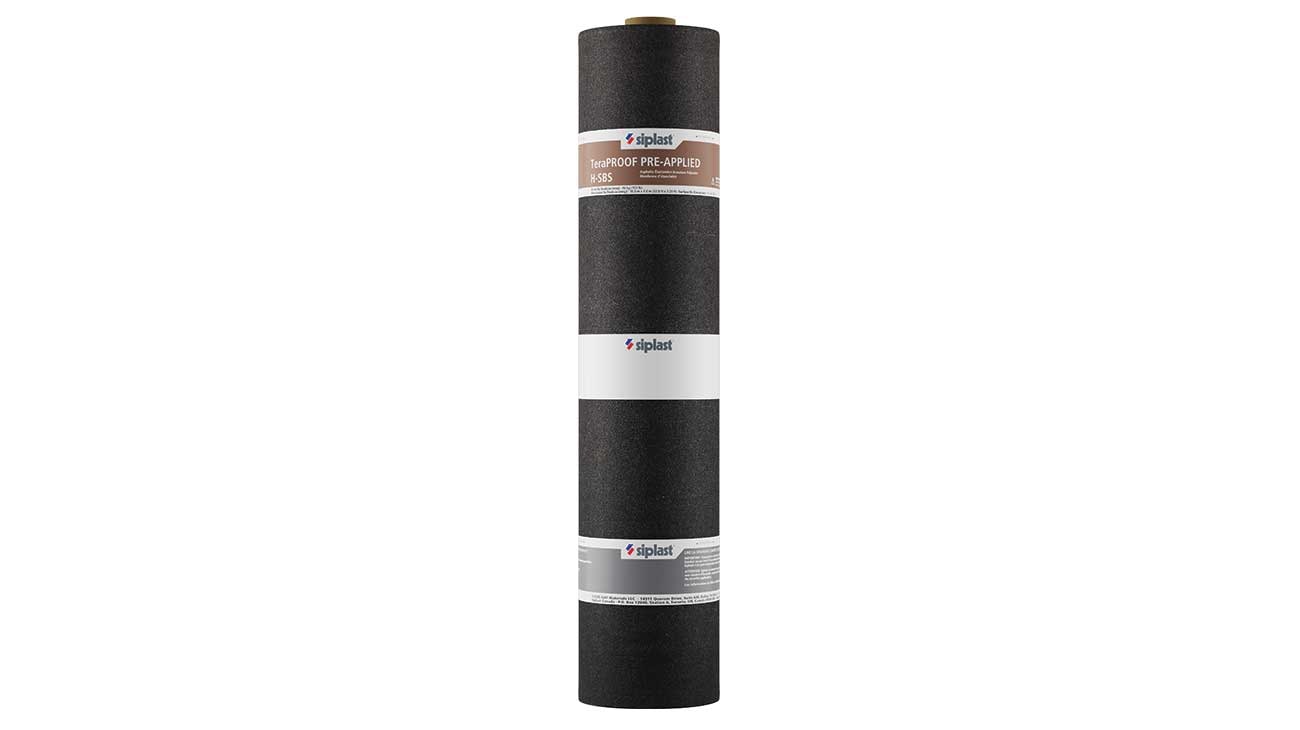

TeraPROOF™ Pre-Applied V-SBS and H-SBS Membrane are modified-bitumen, heat-weldable membranes for waterproofing applications. Designed for use in below-grade waterproofing systems prior to the placement of concrete, they consist of polyester mat impregnated and coated with SBS-modified bitumen. The top is surfaced with fine mineral aggregate and the bottom surface is coated with an SBS-modified bitumen adhesive layer specifically formulated for torch-lap sealing applications with a polyolefin burn-off film.

ADVANTAGES

• Passes ICC-ES AC 527 criteria

USES

• Pre-applied waterproofing

Application

Refer to the applicable Siplast Installation Guide for detailed application information of Siplast TeraPROOF SBS Membranes.

Storage & handling

All Siplast roll waterproofing products should be stored on end on a clean flat surface. Rolls should not be dropped on ends or edges or stored in a leaning position. Deformation resulting from these actions will make proper installation difficult. All products should be stored in a dry place out of direct exposure to the elements and should not be double stacked. Material should be handled so that it remains dry prior to and during installation. See product packaging and the Safety Data Sheet for specific information on the safe handling of this product.

Packaging
