About TeraPROOF™ 10-11 Drainage Mat

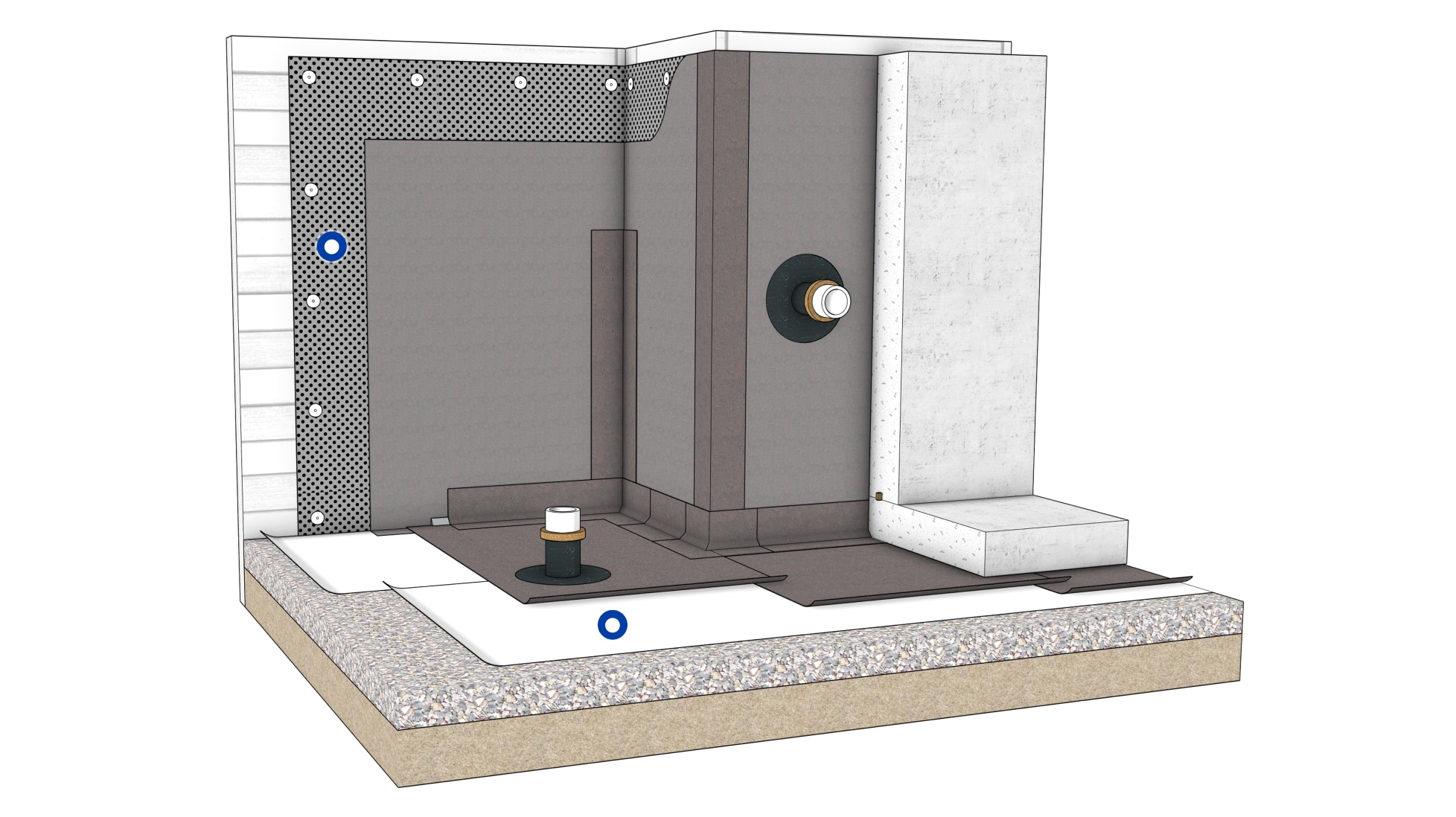

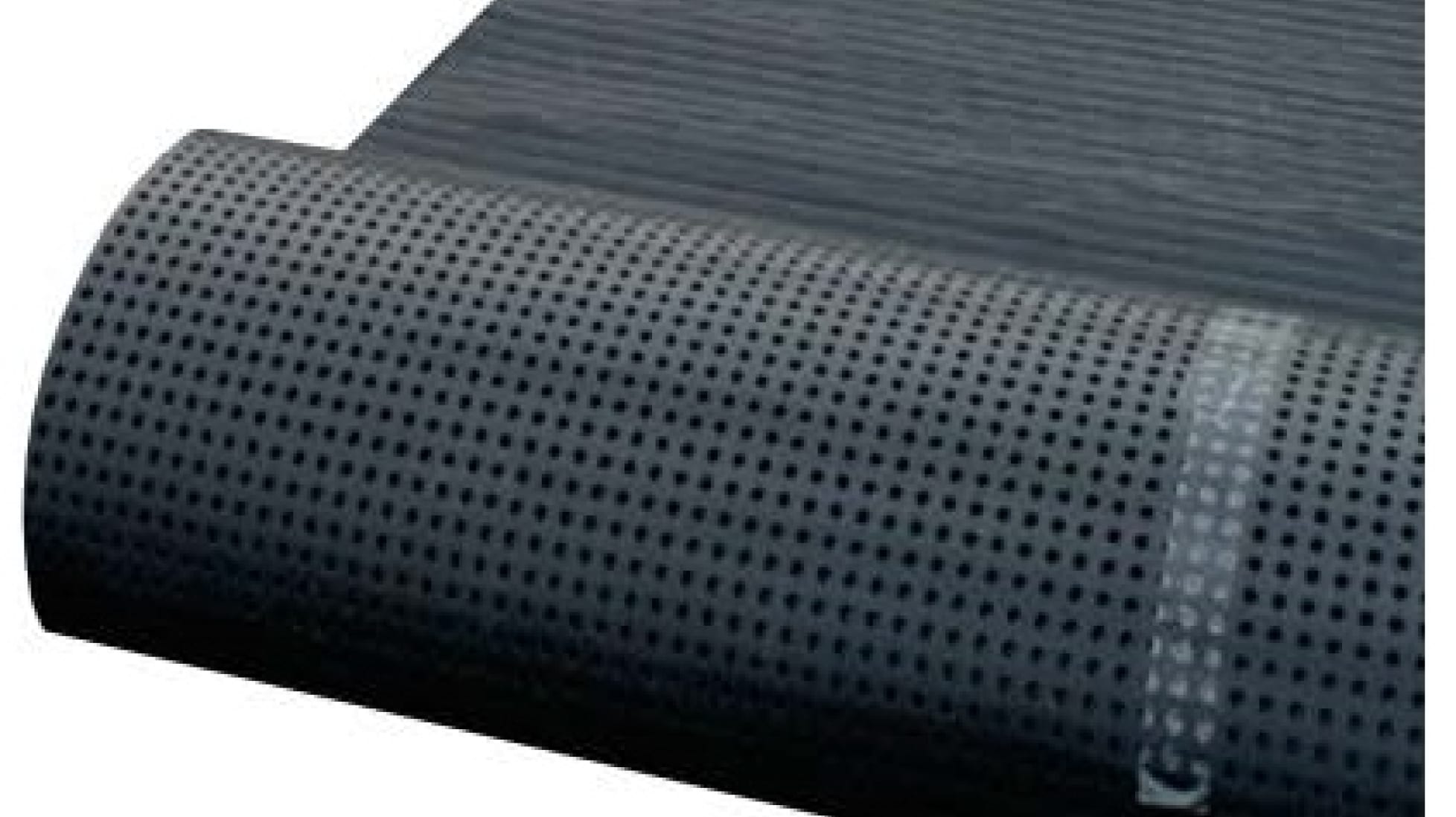

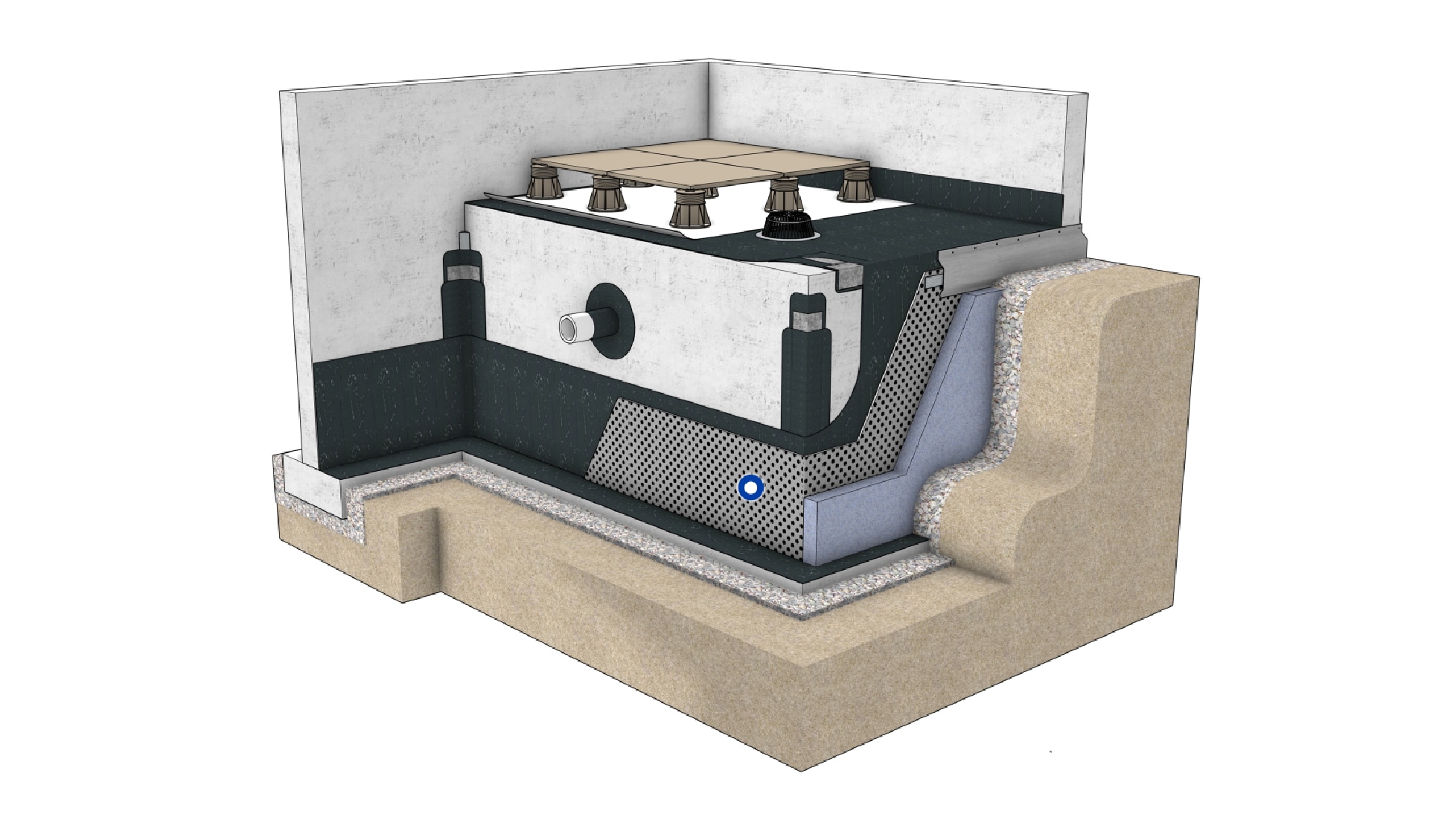

TeraPROOF™ 10-11 Drainage Mat is a high-performance, two-layer drainage composite designed for below grade system applications. It features a dimpled drainage core made of impact- and tear-resistant co-polymer polypropylene, bonded to a high-strength, needle-punched polypropylene geotextile – allowing water to pass freely while blocking soil particles to prevent clogging. The product ensures a continuous water drainage plane, and relieves hydrostatic pressure. Suitable applications include underground walls, pile and lagging walls, retaining walls, bridge abutments, and hydrostatic pressure relief layers. Available in 4ft and 6ft wide rolls that are 50ft long.
Contact Siplast for information on other approved product uses.
ADVANTAGES
- Helps prevent clogging by blocking soil particles
- Allows for continuous water drainage plane
- Relieves hydrostatic pressure build-up
USES

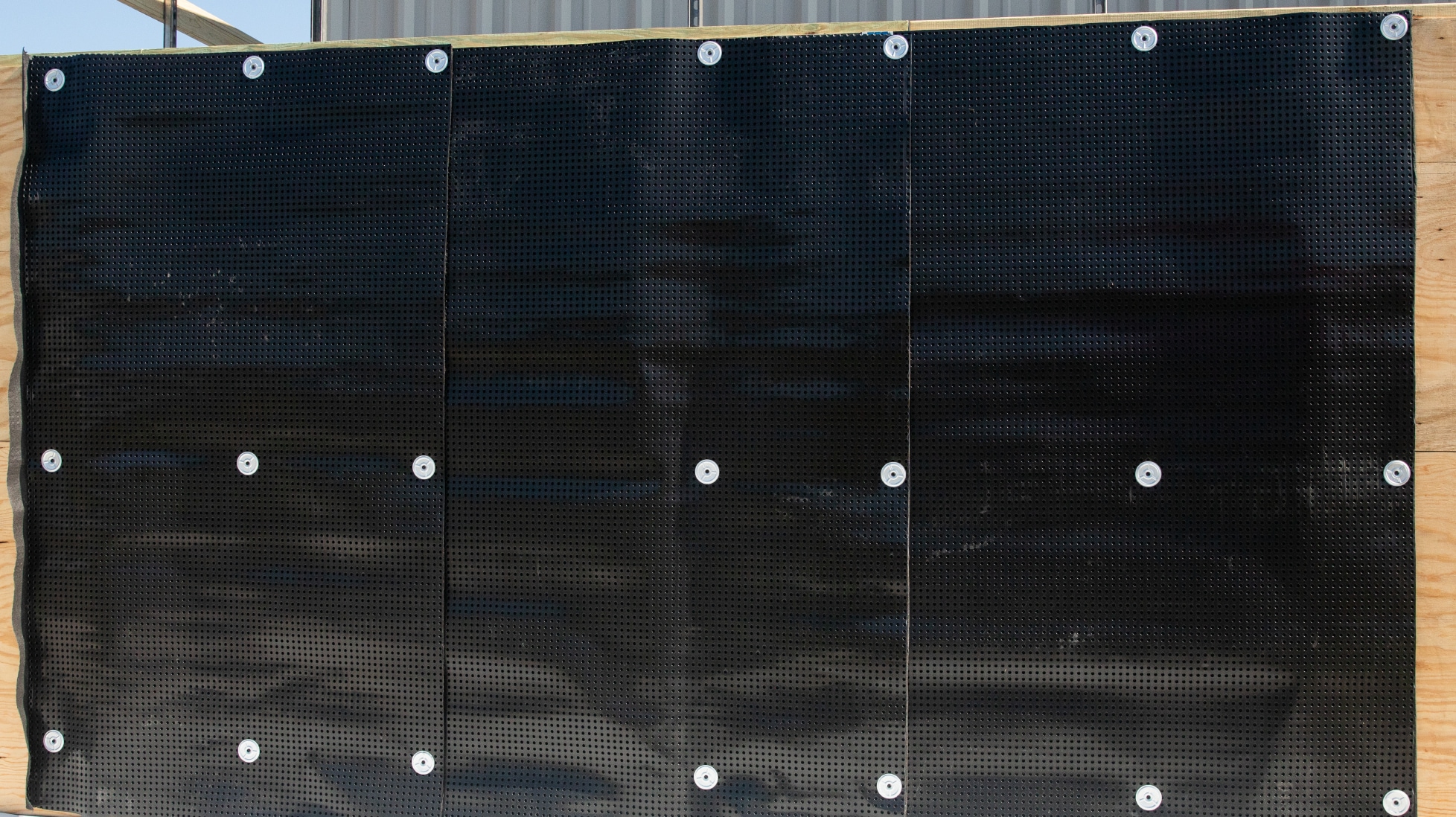

Installation
Application
Refer to the applicable Siplast Installation Guide for detailed application information of Siplast TeraPROOF 10-11 Drainage Mat.
Storage & handling
All Siplast roll waterproofing products should be stored on a clean flat surface. Rolls should not be dropped on ends or edges or stored in a leaning position. Deformation resulting from these actions will make proper installation difficult. All products should be stored in a dry place out of direct exposure to the elements. Material should be handled so that it remains dry prior to and during installation.
Packaging
| |
4 ft. x 50 ft. roll
|
6 ft. x 50 ft. roll
|
|
Roll weight (nominal)
|
38 lb. (17 kg) |
56 lb. (25 kg) |
|
Rolls per pallet
|
12 |
6 |
|
Pallets per truckload (typical)
|
56 (double-stacked) |
28 (double-stacked) |
