Owens Corning® Thermafiber® RainBarrier® Mineral Wool

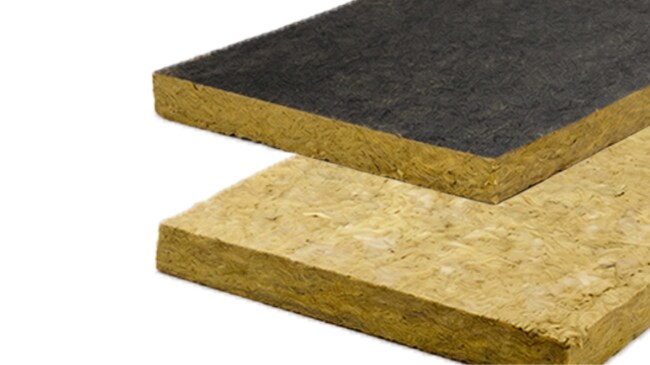

Faced and unfaced Owens Corning Thermafiber RainBarrier mineral wool boards.

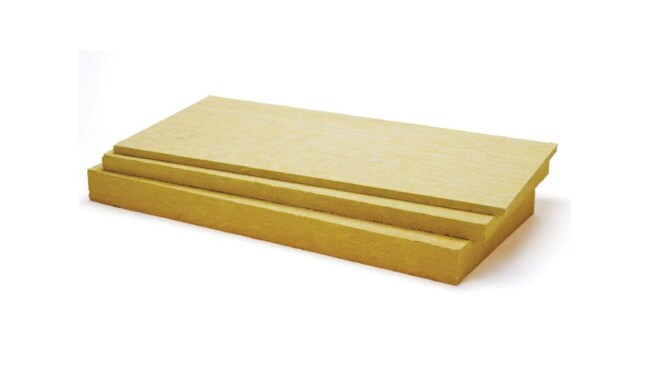

Stack of three Owens Corning Thermafiber RainBarrier mineral wool boards.

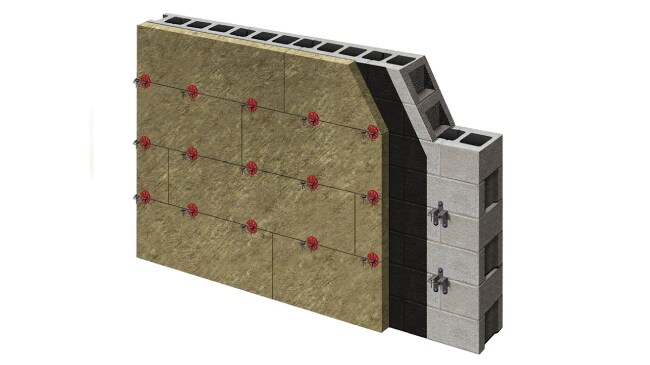

Owens Corning Thermafiber RainBarrier insulation attached to a masonry wall.

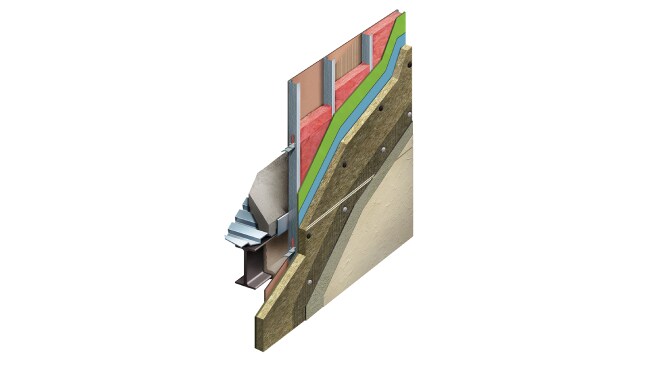

Wall assembly diagram with Owens Corning Thermafiber RainBarrier insulation.
Semi-rigid mineral wool solutions are engineered for rainscreen and cavity wall applications. Available in three product variations to meet any project demand, from assemblies with heavy-duty cladding types to open-joint assemblies to assemblies.
Images courtesy of Owens Corning®

About Thermafiber® RainBarrier® Mineral Wool

Siplast offers Owens Corning Thermafiber® RainBarrier® semi-rigid mineral wool product solutions which are engineered for rainscreen and cavity wall applications. Thermafiber Rainbarrier, the standard mineral wool product; Thermafiber Rainbarrier Dark, standard mineral wool product with black facing designed for visual camouflage in open joint facade systems; and Thermafiber Rainbarrier ci High Compressive where increased structural support in assemblies is needed.

These products provide high-density support for various cladding attachment systems, ensuring a gap-free fit for continuous thermal performance. As a mineral wool option for commercial walls, they provide long-term thermal efficiency and fire protection aross a wide range of commercial building designs.

Featured benefits

Fire resistant icon.

Fire and thermal resistance

Non-combustible mineral wool construction provides a critical thermal barrier and high-temperature resistance
Liquid-applied icon.

Moisture management

Naturally water-repellent and breathable fibers allow for excellent vapor permeance, helping to manage moisture and help prevent mold growth
Tested icon.

Optimized variations

Thermafiber Rainbarrier ci High COmpressive Strength comes in variations - HC, HC Plus, and HC max at varying thicknesses and compressive strengths to meet your specification needs

Thermafiber® RainBarrier®

Two asphalt-saturated fiberglass liners.

Thermafiber® RainBarrier® Dark

Features a bonded black facing designed to provide visual camouflage behind open-joint façade systems - ensuring thermal performance while maintaining low visibility through panel gaps.

Thermafiber® RainBarrier® ci High Compressive

Utilizing Owens Corning ThermaCrimp™ technology, these boards provide high compressive strength for continuous insulation behind any cladding, including combustible and open-joint assemblies. Available in multiple density variations

Packaging


Thermafiber® RainBarrier®

Thermafiber® RainBarrier® Dark

Thermafiber® RainBarrier® ci High Compression

Available thicknesses

 1 in. - 8 in. 1 in. - 8 in. 1 in. - 6 in.
(dependent on variation)

R-value (per inch)

 4.3 4.3 4.2

Size

 16 in. x 48 in., 24 in. x 48 in. 16 in. x 48 in., 24 in. x 48 in. 24 in. x 48 in., 48 in. x 72 in.
← Scroll →

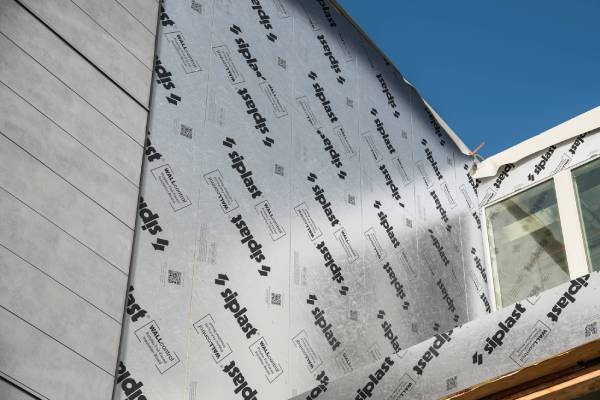

Siplast WALLcontrol above-grade wall system installed on a building exterior.
FEATURED SYSTEM

Wall systems

For optimized solutions at every level, Siplast offers WALLcontrol™ above-grade wall systems. Single-source manufacturing helps ensure that all components—AWBs, flashing, and insulation—work together seamlessly.
View wall systems

Commercial wall systems brochure
